TOUCH & DISPLAY LAMINATION

Frame/Bezel Bonding

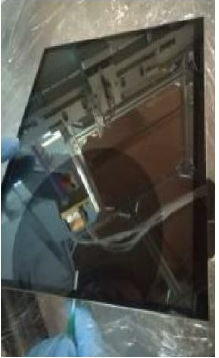

It is a traditional method, bond the touch screen to the LCD frame by 3M adhesive tape or foam adhesive tape. There is air gap between the touch and LCD.

Suitable for the general consumer electronics, cheap cost application products, small sizes solutions.

1. Make frame bonding TOOLS

2. Bond in DUST-FREE workshop

3. Strict QUALITY control

Full Lamination ( OCA )

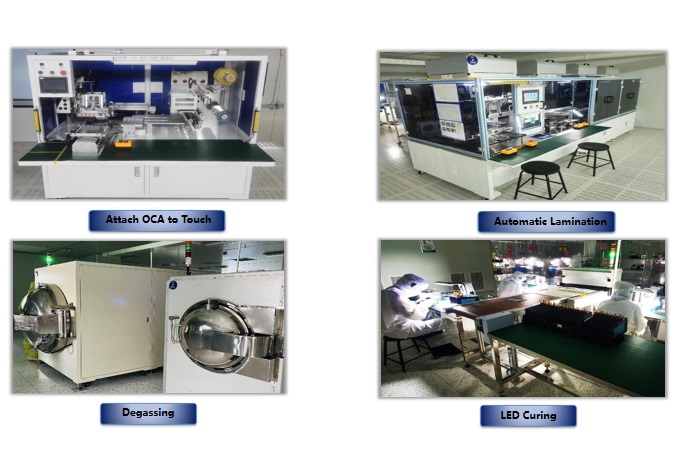

Process Flow

1. 1. Surface Pretreatment
   Clean the surfaces of the touch screen and LCD to remove dust, oil, and impurities.
2. 2. OCA  Lamination (for Small to Medium-Sized Displays)
   Precisely attach the OCA adhesive film onto the touch screen using a vacuum laminator. Then bond the touch screen to the LCD.

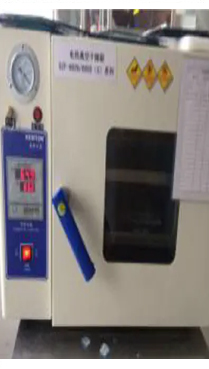

3. 3.Vacuum Thermal Pressing
   Cure the OCA adhesive completely through thermal pressing under vacuum, then degassing.
4. 4. UV Curing & Quality Inspection
   • Do UV curing and optical inspection to verify lamination quality (e.g., bubble count, alignment accuracy, and transmittance).
