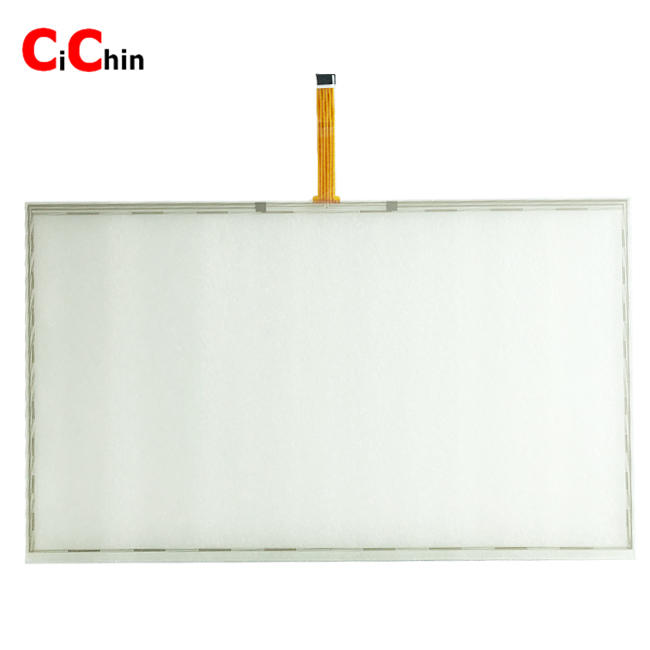

21.5 inch 5 wire resistive menbrane, 21.5 inch 5 wire resistive touch film, monitor touch overlay kits

这里可以自定义设置
21.5 inch 5 wire resistive menbrane, 21.5 inch 5 wire resistive touch film, monitor touch overlay kits
B站不支持收货地址
B站不支持库存规格
Place Of Origin:
China
Trade Terms:
EXW/FOB/CFR/CIF
Payment Terms:
T/T, Western Union,PayPal
Lead Time:
Stock sample: 1-3 days
Mass production: 15 DAYS
Customizing Sample Delivery:
1-2 weeks
Customizing MOQ:
50
Packing:
Carton/wooden
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
该产品后台详情无内容
这里可以自定义设置

Product Description



21.5 inch 5 wire resistive touch screen, 2.54mm pitch, USB/RS232 interface, mainly for touch monitors, industrial computers, ATM, interactive machine etc. Such as ATM touch panel, KIOSK touch panel, Kraoke system touch screen, PC touch screen, cheap monitor touch screen, industrial pc touch screen, supermarket touch screen, ticket selling touch screen, adversting touch panel, interactive machine touch screen, restaurant ording pad touch screen, self-service vending machine touch panel, cheap open frame monitor touch screen, navigation touch screen

Product Parameters



Size

21.5 inch/customizing

Model

TP215W5K

Outline Dimension

289.6X500mm

View Area

274.4X480mm

Active Area

266X476.4mm



Performance

Resoslution(Interpolation)

4096*4096

Linearity Error

<1.5%

Response Speed

<10ms



Mechanical

Input Method

Finger or stylus

Life Span

More than 10 million touches

Pressure

10-100g

Surface Hardness

3H

Optical

Light Transmission

>80%

Structure

F+F

Film+film/customizing

F+GFilm+ITO glass
F+G+PETFilm+ITO glass+PET cover/customizing

Environmental
Operating Temperature-10°C ~ 60°CStorage Temperature-20°C ~ 70°C
Operating Humidity0%~90%Storage Humidity0% to 95%
Electrical
VoltageTypical +DC 5V, +4.75V to +5.25VCurrent5mA~25mA
InterfaceFull Duplex USB 2.0 (Full Speed) Plug and play compatible
Serial RS-232. Baud Rate: 9600, 8 Data Bits, 1 Stop Bit, No Parity
Isolation Resistance>20MΩ @ DC 25VResistance300Ω< X Axis <900Ω, 200Ω< Y Axis <800Ω (Varies with different size)
Agency ApprovalsCE, FCC, RohsOperation SystemLinux/ Dos / Windows ME/95/98 / NT4.0/XP/2000/ 7 /Mac OS/QNX

Drawings And Packaging

Drawings

Packing drawing
