21.5 inch capacitive touch module, POS touch screen panel, industrial PC touch, long life touch

这里可以自定义设置
21.5 inch capacitive touch module, POS touch screen panel, industrial PC touch, long life touch
B站不支持收货地址
B站不支持库存规格
Place Of Origin:
China
Trade Terms:
EXW / FOB / CFR / CIF
Payment Terms:
T/T, Western Union, PayPal
Lead Time:
Stock sample: 1-3 days
Customizing Sample Delivery:
2-3 weeks
Customizing MOQ:
100
Packing:
Carton/wooden
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
该产品后台详情无内容
这里可以自定义设置

Product Description

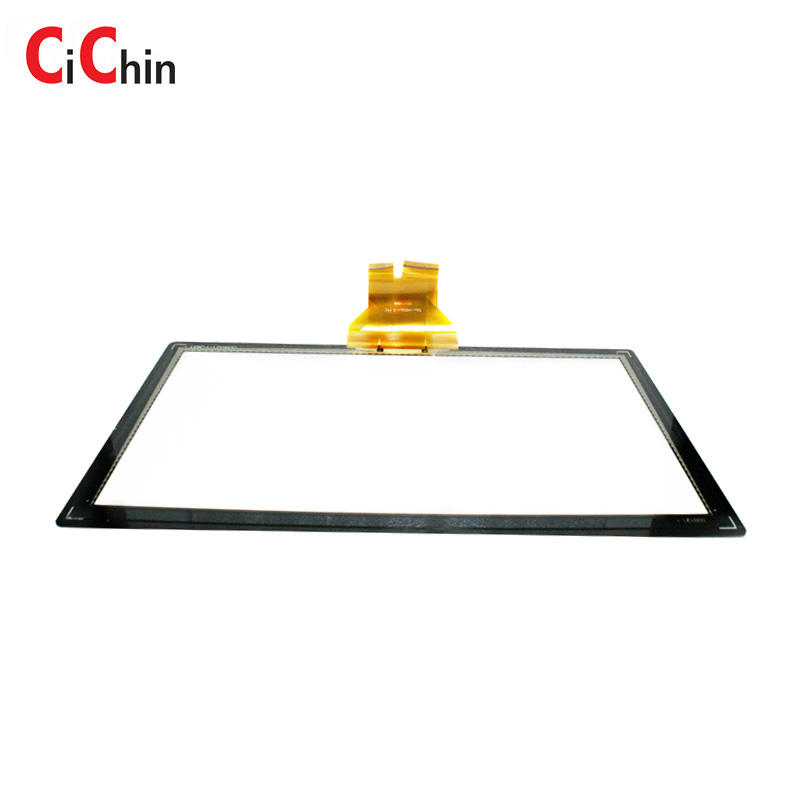

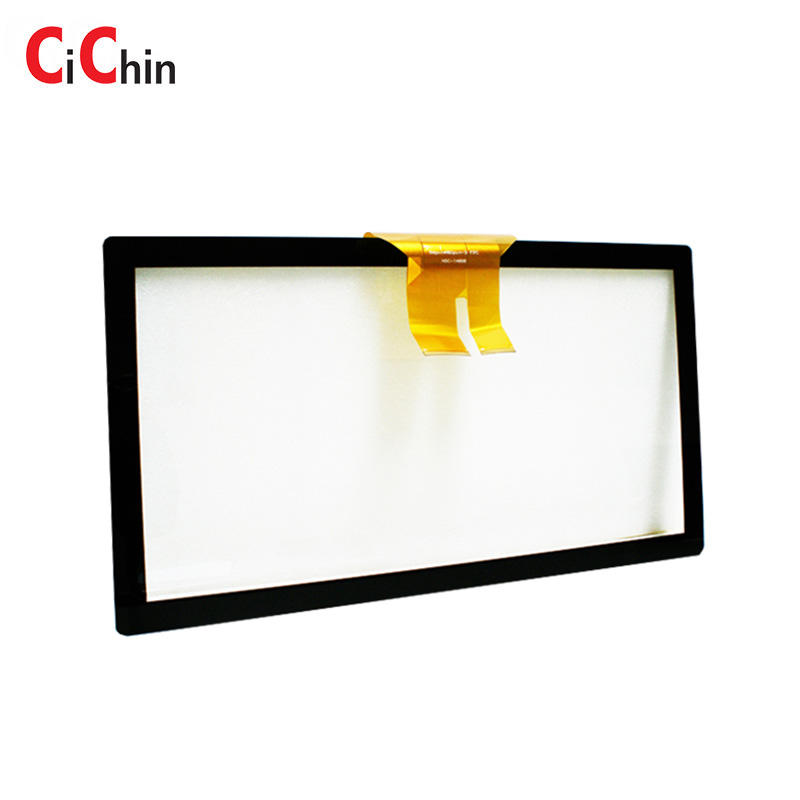

21.5 inch projected capacitive touch screen, with EETI controller, support multi touch, 10 touch points, USB/RS232/I2C interface, mainly for touch monitors, industrial computers, ATM, interactive machine etc. Such as outdoor monitor touch screen, open frame capacitive touch screen, ATM touch panel, shopping mall/hospital ineractive system touch screen, advertising monitor touch screen,shopping wall touch screen, supermarket touch screen kiosk, vending machine touch screen, KTV touch panel, PC touch screen, television touch panel, all in one PC touch panel, dishing monitor touch screen, gaming machine touch screen, POS touch panel, fingerprint machine touch screen, floor standing advertising touch panel,treadmill touch screen,restaurant menu touch screen,self-service kiosk touch screen, ticket machine touch panel, industral PC touch screen,laptop touch sceen, mirror touch sensor, mirror touch screen, notebook touch screen,payment kiosk touch screen, vehicle touch screen, bus advertising touch overlay,elevator advertising touch sensor, hospital/bank registration machine touch screen panel, karaoke touch screen,highway advertising machine touch screen, information KIOSK touch screen etc.  Can customize the cover lens with different dimensions,shapes, AR/AG/AF treatments as well as the required thickness, 1.1mm/2.0mm/3mm/4mm/6mm/8mm.

Product Parameters



Size

21.5 inch Projected Capacitive Touch Screen

Supply Voltage

USB DC 5 V

Outline Dimension

524.00x321.8mm/customize

Interface

USB 2.0 FULL SPEED/RS232/I2C

Sensor outline Dimension

508x303.8mm/customize

Controller

Chip on Board/EETI solution

Active Area

478x269.8mm/customize

Surface Hardness

>6H

Max Cover lens

max 4mm /customize

Light Transmission

>85%

Structure

GG

Operating Temperature

-20°C ~ 70°C

Response Speed

<10ms

Storage Temperature

-30°C ~ 80°C

Input Method

Finger

Operation Humidity

45-85%RH

Touch Life

More than 300,000,000 times

Operation System

Android, Linux, Windows, Mac, QNX

Resolution

4096x4096 (Automatic match)

Surface treatment option

AG/AR/AF etc

Touch Points

10 points

Special requirements

Gloved hand/ Touch pen/Water-proof etc

Drawings And Packaging

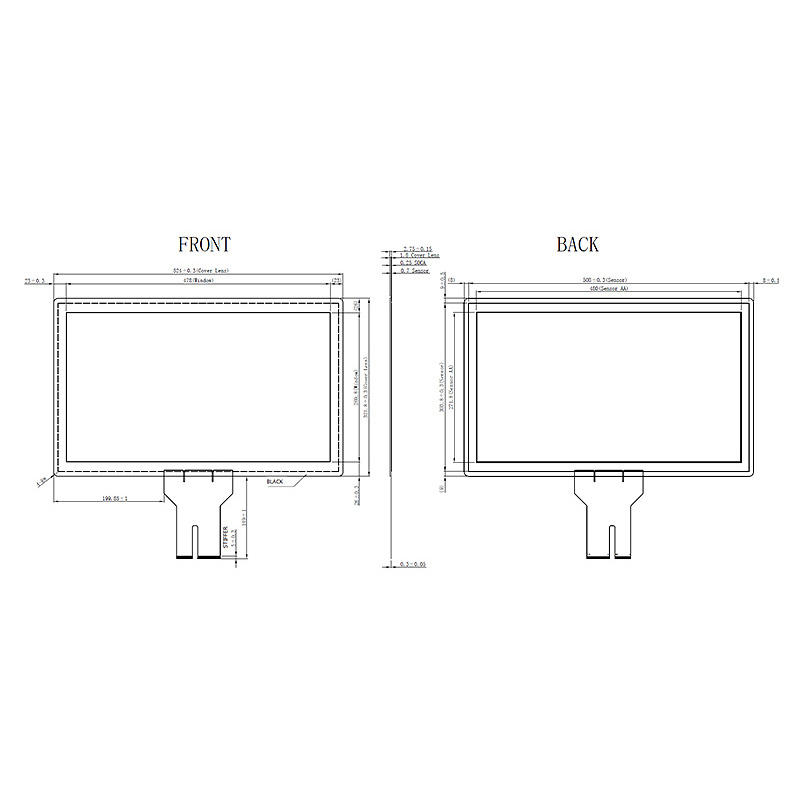

Drawings

Packing drawing
