Product Description

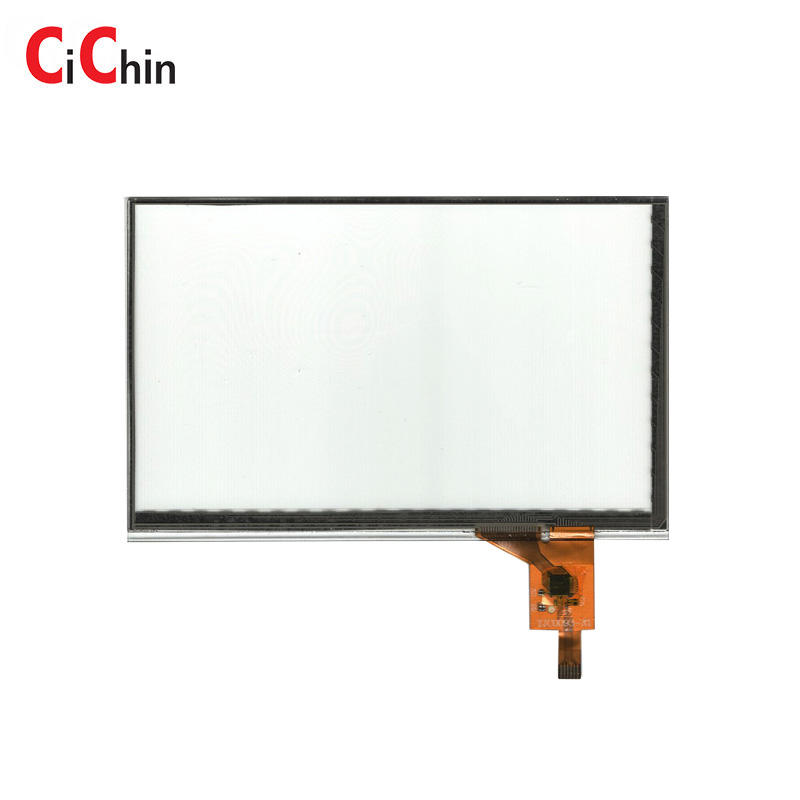

7 inch projected capacitive touch screen, with FOCAL TECH, GOODIX controller, support multi touch,5 touch points, I2C interface. Intercome system touch panel,remote controller touch panel, robots touch panel, switches touch panel, small electrical apparatus touch panel,measuremeters touch panel,handheld terminals touch panel, learning machine touch panel,telecommunication device touch panel.gps touch screen, DVD touch screen, kids game touch screen, hotel door bell touch screen, recorder touch screen, door lock touch panel, video door phone touch screen, headrest monitor touch screen,wall calendar touch panel, etc. Can customize the cover lens with different dimensions,shapes, AR/AG/AF treatments as well as the required thickness, 1.1mm/2.0mm/3mm/4mm/5mm. accept sensor ,FPC and strcure(GP/GG/ GFF/PF/GF ETC.) customization.

Product Parameters

Size	7 inch Projected Capacitive Touch Screen	Supply Voltage	I2C DC 2.8-3.3 V
Outline Dimension	164x103/ customize	Interface	I2C/SPI
Sensor outline Dimension	154.6x91/ customize	Controller	Chip on FPC
Active Area	154.08x91/ customize	Surface Hardness	>6H
Cover lens	1.1mm /customize	Light Transmission	>85%
Structure	GG/customize	Operating Temperature	-20°C ~ 70°C
Response Speed	<10ms	Storage Temperature	-30°C ~ 80°C
Input Method	Finger	Operation Humidity	45-85%RH
Touch Life	More than 300,000,000 times	Operation System	Android, Linux, etc
Resolution	4096x4096 (Automatic match)	Surface treatment option	AG/AR/AF etc
Touch Points	5 points	Special requirements	Gloved hand/ Touch pen/Water-proof etc

Drawings And Packaging

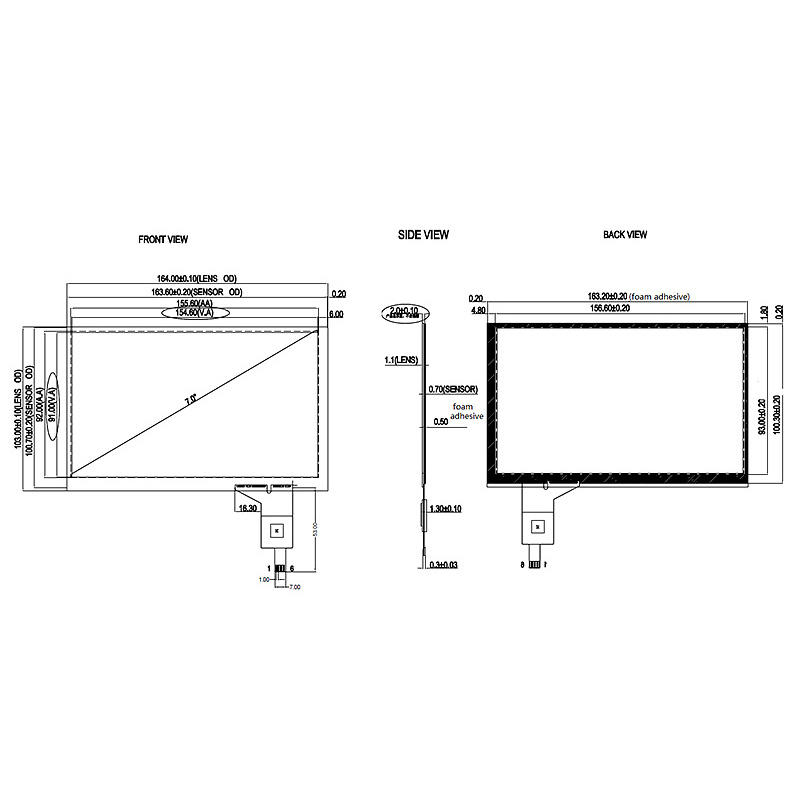

Drawings

Packing drawing

Customzation
