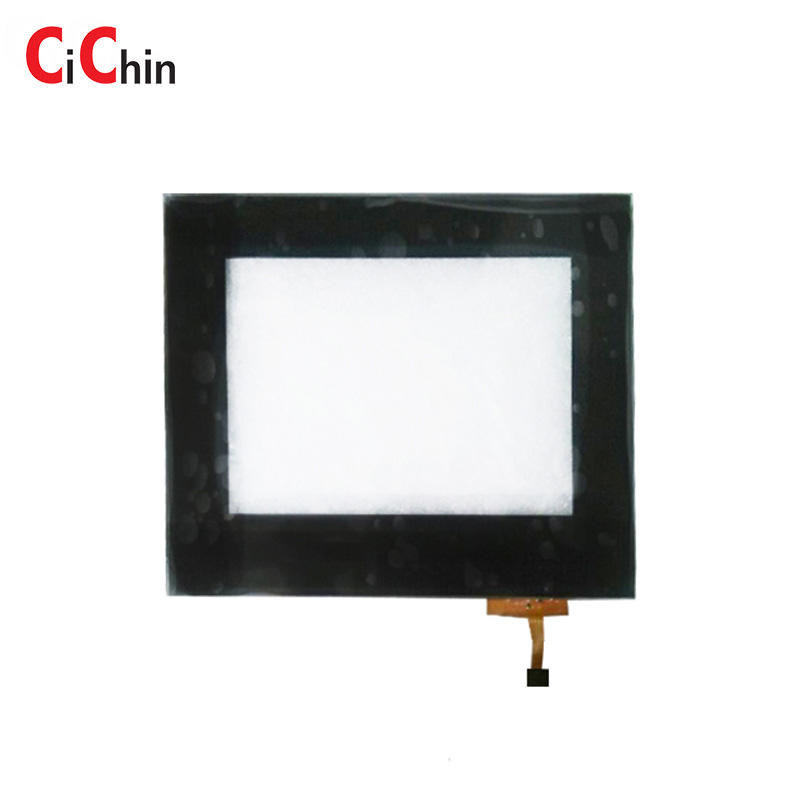

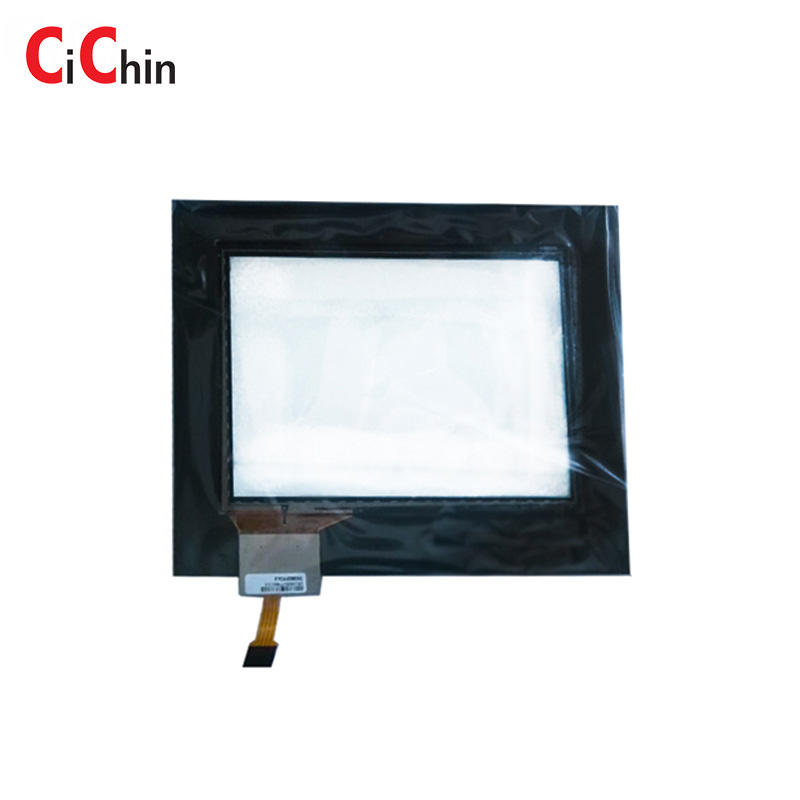

    8.4 inch USB capacitive touch screen overlay, industrial small usb capacitive touch panel

    这里可以自定义设置
    8.4 inch USB capacitive touch screen overlay, industrial small usb capacitive touch panel
    B站不支持收货地址
    B站不支持库存规格
    Place Of Origin:
    China
    Trade Terms:
    EXW / FOB / CFR / CIF
    Payment Terms:
    T/T, Western Union, PayPal
    Lead Time:
    Stock sample: 1-3 days, Mass production: 25 DAYS
    Customizing Sample Delivery:
    2-3 weeks
    Customizing MOQ:
    500
    Packing:
    Carton/wooden
    参数暂无数据
    多属性暂无数据
    B站不支持优惠卷

    Add success, do you want to check your shopping cart?

    Ok Close
    暂无分享
    B站不支持产品保障
    该产品后台详情无内容
    这里可以自定义设置

    Product Description



    8.4 inch projected capacitive touch screen, with EETI, ILITEK controller, support 10 touch points,USB interface.Support android and windows operation systems. Can customize the cover lens with different dimensions,shapes, AR/AG/AF treatments as well as the required thickness, 1.1mm/2.0mm/3mm/4mm/5mm.Accept sensor ,FPC and strcure customization. Telecommunication Devices touch screen, industrial monitor touch screen etc.

    Product Parameters



    More

    Size

    8.4 inch Projected Capacitive Touch Screen

    Supply Voltage

    USB DC  2.8-3.3 V

    Outline Dimension

    230.4x200.3/ customize

    Interface

    USB

    Sensor outline Dimension

    172.4x124.7/ customize

    Controller

    Chip on FPC/Chip on Board/EETI or ILITEK

    Active Area

    162.2x129.8/ customize

    Surface Hardness

    >6H

    Cover lens

    4mm/customize

    Light Transmission

    >85%

    Structure

    GG/GP/GFF/PF/GF/customize

    Operating Temperature

    -20°C ~ 70°C

    Response Speed

    <10ms

    Storage Temperature

    -30°C ~ 80°C

    Input Method

    Finger

    Operation Humidity

    45-85%RH

    Touch Life

    More than 300,000,000 times

    Operation System

    Android, Linux, Windows etc

    Resolution

    4096x4096 (Automatic match)

    Surface treatment option

    AG/AR/AF etc

    Touch Points

    10 points

    Special requirements

    Gloved hand/ Touch pen/Water-proof etc

    Drawings And Packaging

    More

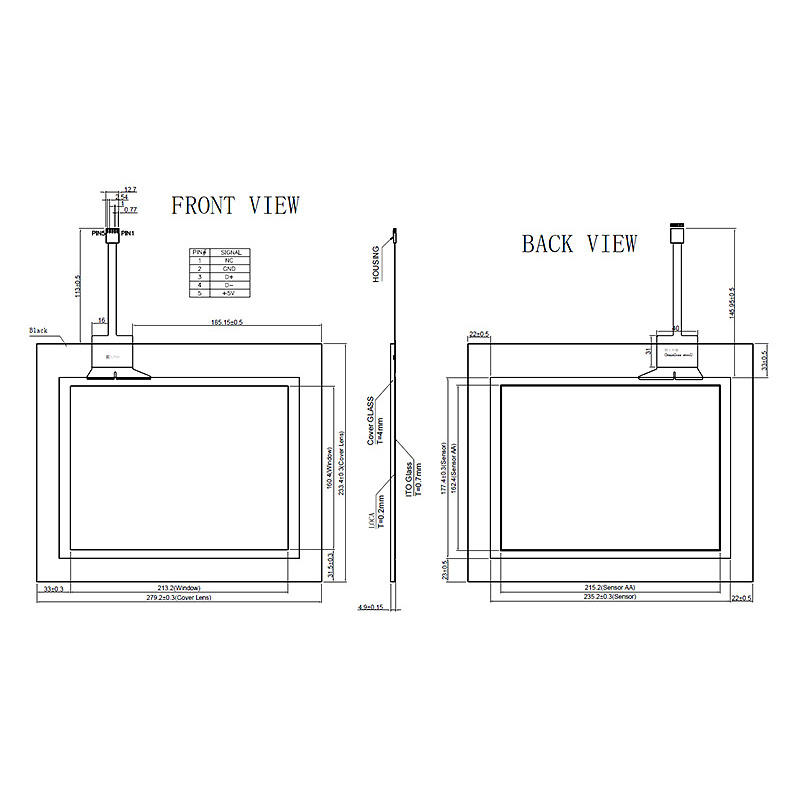

    Drawings

    Packing drawing
