Product Description
5.6 inch projected capacitive touch screen, with FOCAL TECH, GOODIX controller, support multi touch,5 touch points, I2C interface. Intercome system touch panel,remote controller touch panel, robots touch panel, switches touch panel, small electrical apparatus touch panel,measuremeters touch panel,handheld terminals touch panel, learning machine touch panel,telecommunication device touch panel, gps touch screen, DVD touch screen, kids game touch screen, hotel door bell touch screen, kids game touch screen, recorder touch screen, door lock touch panel etc. Can customize the cover lens with different dimensions,shapes, AR/AG/AF treatments as well as the required thickness, 1.1mm/2.0mm/3mm/4mm/5mm. accept sensor ,FPC and strcure(GP/GG/ GFF/PF/GF ETC.) customization. customization.
Size | 7 inch Projected Capacitive Touch Screen | Supply Voltage | I2C DC 2.8-3.3 V |

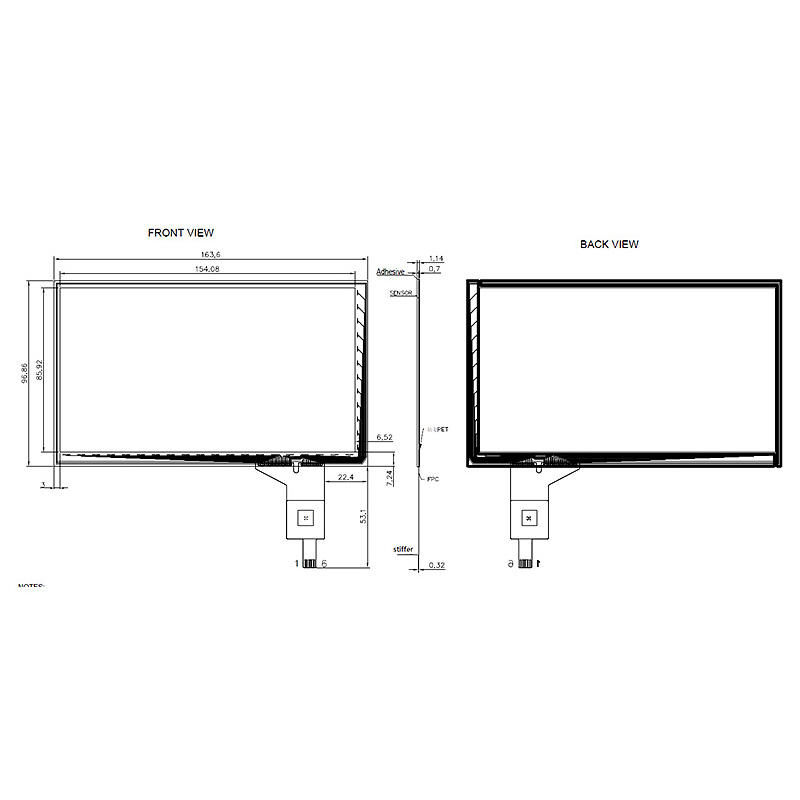

Outline Dimension | 163.6x96.86/ customize | Interface | I2C/SPI |
Sensor outline Dimension | 154.08x85.92/ customize | Controller | Chip on FPC |
Active Area | 154.08x85.92/ customize | Surface Hardness | >6H |
Cover lens | customize | Light Transmission | >85% |
Structure | GP/customize | Operating Temperature | -20°C ~ 70°C |
Response Speed | <10ms | Storage Temperature | -30°C ~ 80°C |
Input Method | Finger | Operation Humidity | 45-85%RH |
Touch Life | More than 300,000,000 times | Operation System | Android, Linux, etc |
Resolution | 4096x4096 (Automatic match) | Surface treatment option | AG/AR/AF etc |
Touch Points | 5 points | Special requirements | Gloved hand/ Touch pen/Water-proof etc |
