Product Description

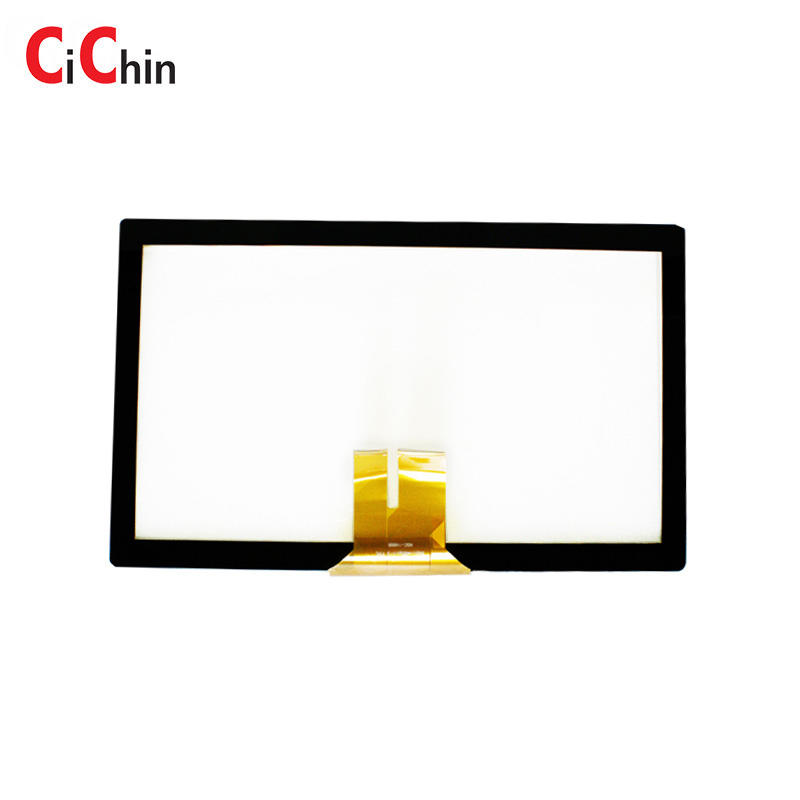

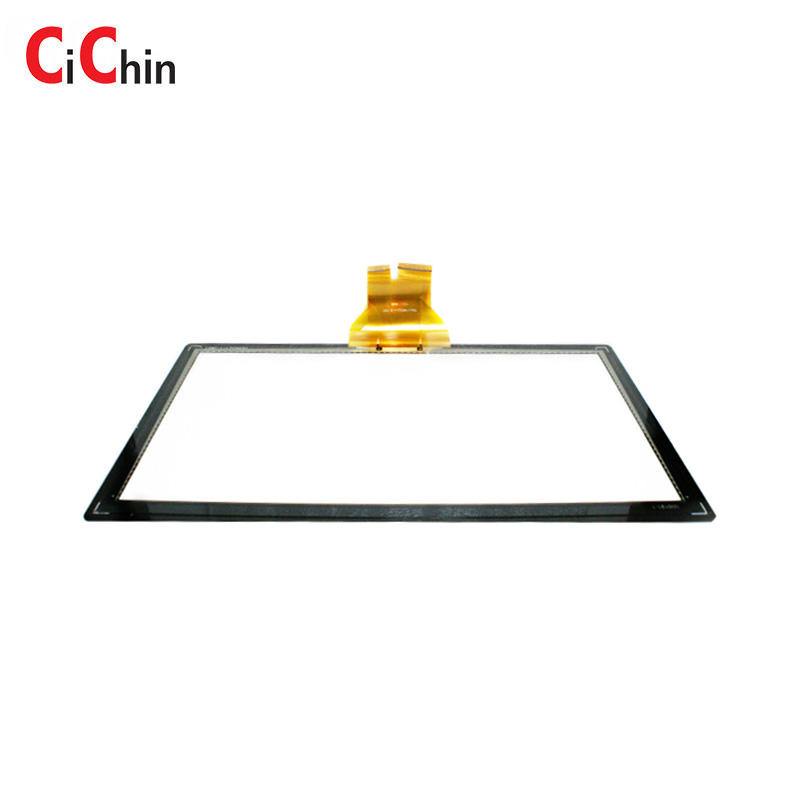

23.1 inch projected capacitive touch screen, with EETI controller, support multi touch, 10 touch points, USB/RS232/I2C interface, mainly for touch monitors, industrial computers, ATM, interactive machine etc. Such as outdoor monitor touch screen, open frame capacitive touch screen, ATM touch panel, shopping mall/hospital ineractive system touch screen, advertising monitor touch screen,shopping wall touch screen, supermarket touch screen kiosk, vending machine touch screen, KTV touch panel, PC touch screen, television touch panel, all in one PC touch panel, dishing monitor touch screen, gaming machine touch screen, POS touch panel, fingerprint machine touch screen, floor standing advertising touch panel,treadmill touch screen,restaurant menu touch screen,self-service kiosk touch screen, ticket machine touch panel, industral PC touch screen,laptop touch sceen, mirror touch sensor, mirror touch screen, notebook touch screen,payment kiosk touch screen, vehicle touch screen, bus advertising touch overlay,elevator advertising touch sensor, hospital/bank registration machine touch screen panel, karaoke touch screen,highway advertising machine touch screen, information KIOSK touch screen etc. Can customize the cover lens with different dimensions,shapes, AR/AG/AF treatments as well as the required thickness, 1.1mm/2.0mm/3mm/4mm/6mm/8mm.
Size | 23.1 inch Projected Capacitive Touch Screen | Supply Voltage | USB DC 5 V |
Outline Dimension | 551.18x334.42mm/customize | Interface | USB 2.0 FULL SPEED/RS232/I2C |
Sensor outline Dimension | 531.18x324.42mm/customize | Controller | Chip on Board/EETI solution |
Active Area | 511.18x288.42mm/customize | Surface Hardness | >6H |
Max Cover lens | max 4mm /customize | Light Transmission | >85% |
Structure | GG | Operating Temperature | -20°C ~ 70°C |
Response Speed | <10ms | Storage Temperature | -30°C ~ 80°C |
Input Method | Finger | Operation Humidity | 45-85%RH |
Touch Life | More than 300,000,000 times | Operation System | Android, Linux, Windows, Mac, QNX |
Resolution | 4096x4096 (Automatic match) | Surface treatment option | AG/AR/AF etc |
Touch Points | 10 points | Special requirements | Gloved hand/ Touch pen/Water-proof etc |
