Product Description

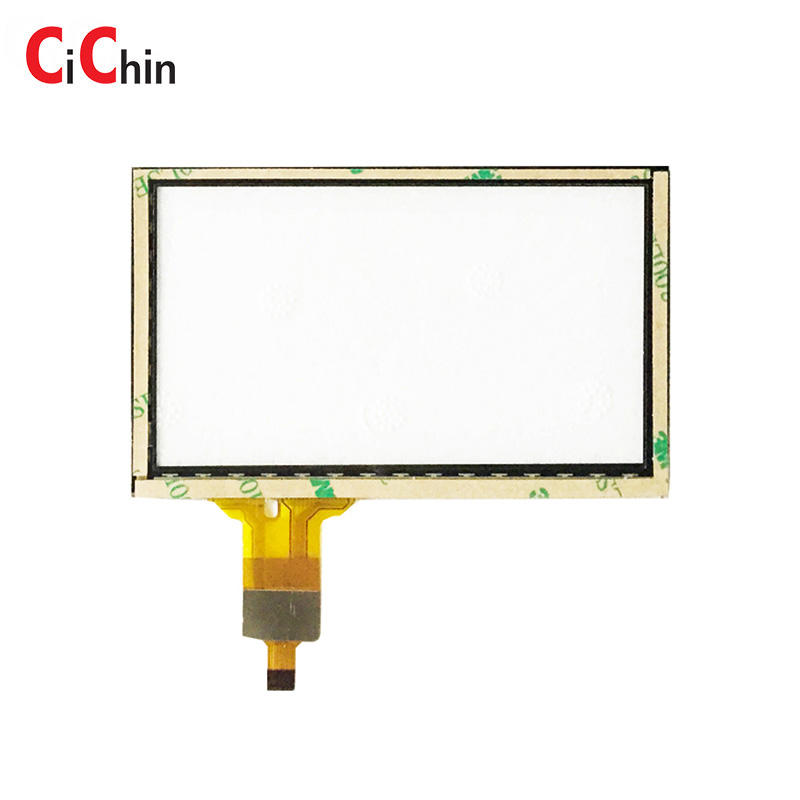

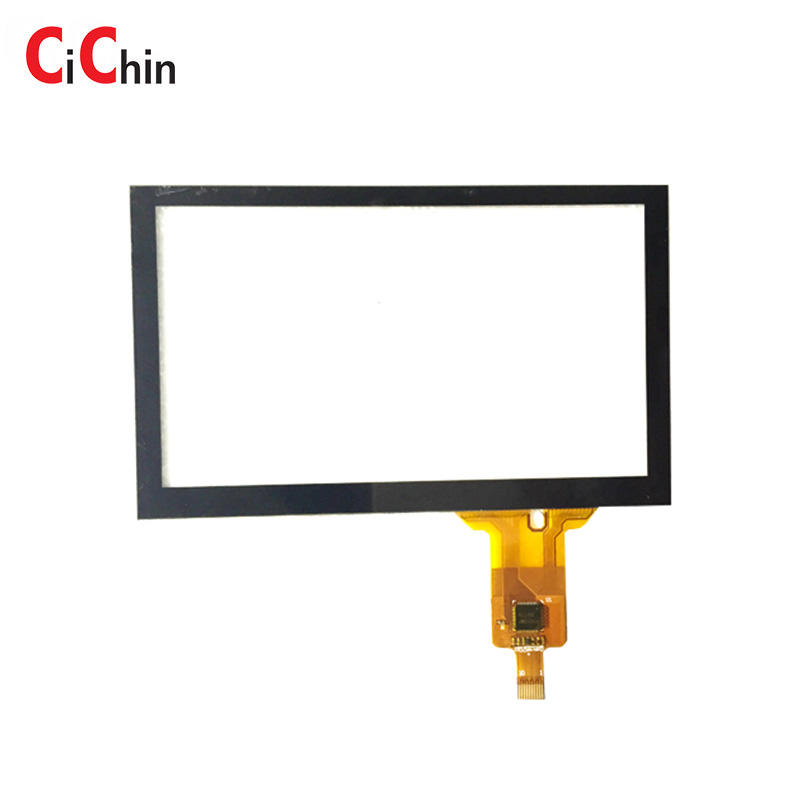

4.3 inch projected capacitive touch screen, with FOCAL TECH, GOODIX controller, support multi touch,5 touch points, I2C interface. Intercome system touch screen,remote controller touch screen, robots touch screen, switches touch screen, small electrical apparatus touch screen,measuremeters touch screen,handheld terminals touch screen,gps touch screen, DVD touch screen, kids game touch screen, hotel door bell touch screen, kids game touch screen, recorder touch screen, door lock touch panel etc. Can customize the cover lens with different dimensions,shapes, AR/AG/AF treatments as well as the required thickness, 1.1mm/2.0mm/3mm/4mm/5mm. accept sensor ,FPC and strcure(GP/GG/ GFF/PF/GF ETC.) customization. customization.
Size | 4.3 inch Projected Capacitive Touch Screen | Supply Voltage | I2C DC 2.8-3.3 V |

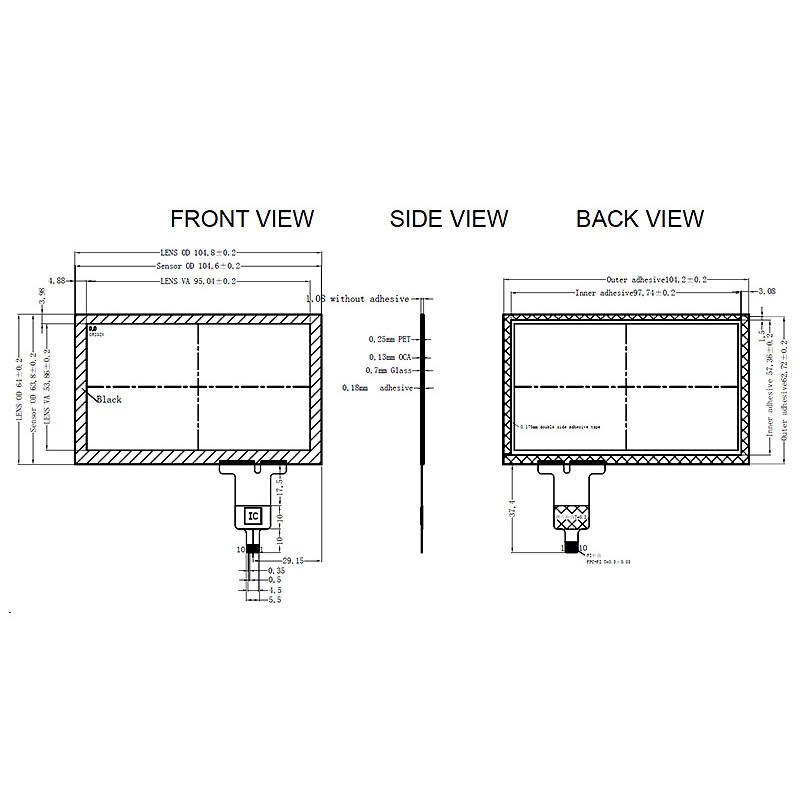

Outline Dimension | 104.8x64/ customize | Interface | I2C/SPI |
Sensor outline Dimension | 95.04x53.86/ customize | Controller | Chip on FPC |
Active Area | 95.04x53.86/ customize | Surface Hardness | >6H |
Cover lens | customize | Light Transmission | >85% |
Structure | GP/GG/customize | Operating Temperature | -20°C ~ 70°C |
Response Speed | <10ms | Storage Temperature | -30°C ~ 80°C |
Input Method | Finger | Operation Humidity | 45-85%RH |
Touch Life | More than 300,000,000 times | Operation System | Android, Linux, etc |
Resolution | 4096x4096 (Automatic match) | Surface treatment option | AG/AR/AF etc |
Touch Points | 5 points | Special requirements | Gloved hand/ Touch pen/Water-proof etc |
